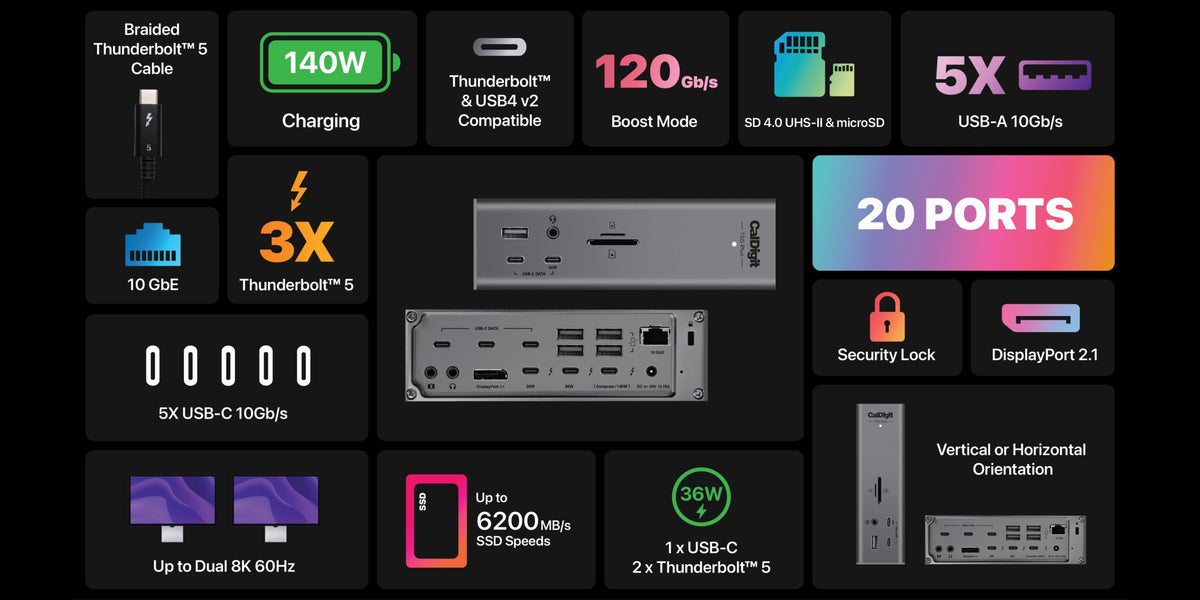

20 Ports of Extreme Connectivity
Description
Over a decade after the original Thunderbolt Station redefined what was possible via a single connection, the TS5 Plus has built on previous generations to offer the ultimate docking station experience.
Powered by the latest Thunderbolt 5 technology, the TS5 Plus expands Mac and PC workflows with the most advanced port selection ever included on a Thunderbolt dock.
Compare models.
Features & Compatibility
- Next generation dock with Thunderbolt 5 connectivity
- Thunderbolt 5 ports deliver greater performance (up to 120Gb/s)
- Up to 140W charging for the most demanding modern laptops
- Support for up to 3x 4K displays*
- Extensive connectivity options with 20 ports (5x USB-A and 5x USB-C)
- Offline charging keeps USB devices powered without a host device
- 10 Gigabit Ethernet support for high speed networking support
- UHS-II SD and microSD card slots
- Dual USB controllers for improved performance
- 36W USB-C charging port
- DisplayPort 2.1 support
*On supported Thunderbolt 5 Windows PCs
Minimum System Requirements- macOS 15 or above
- Windows 11 or above
- Windows Intel 12th Gen Processor or newer
- Thunderbolt NVM Firmware 43.3 or newer
- Thunderbolt 4 or 5 Computers
- Thunderbolt 3 Macs (NOTE: Not compatible with Thunderbolt 3 Windows PC)
- USB4 or USB4 v2 Computer (PCIe Tunneling support required)
- Thunderbolt/USB4 iPad
Specifications

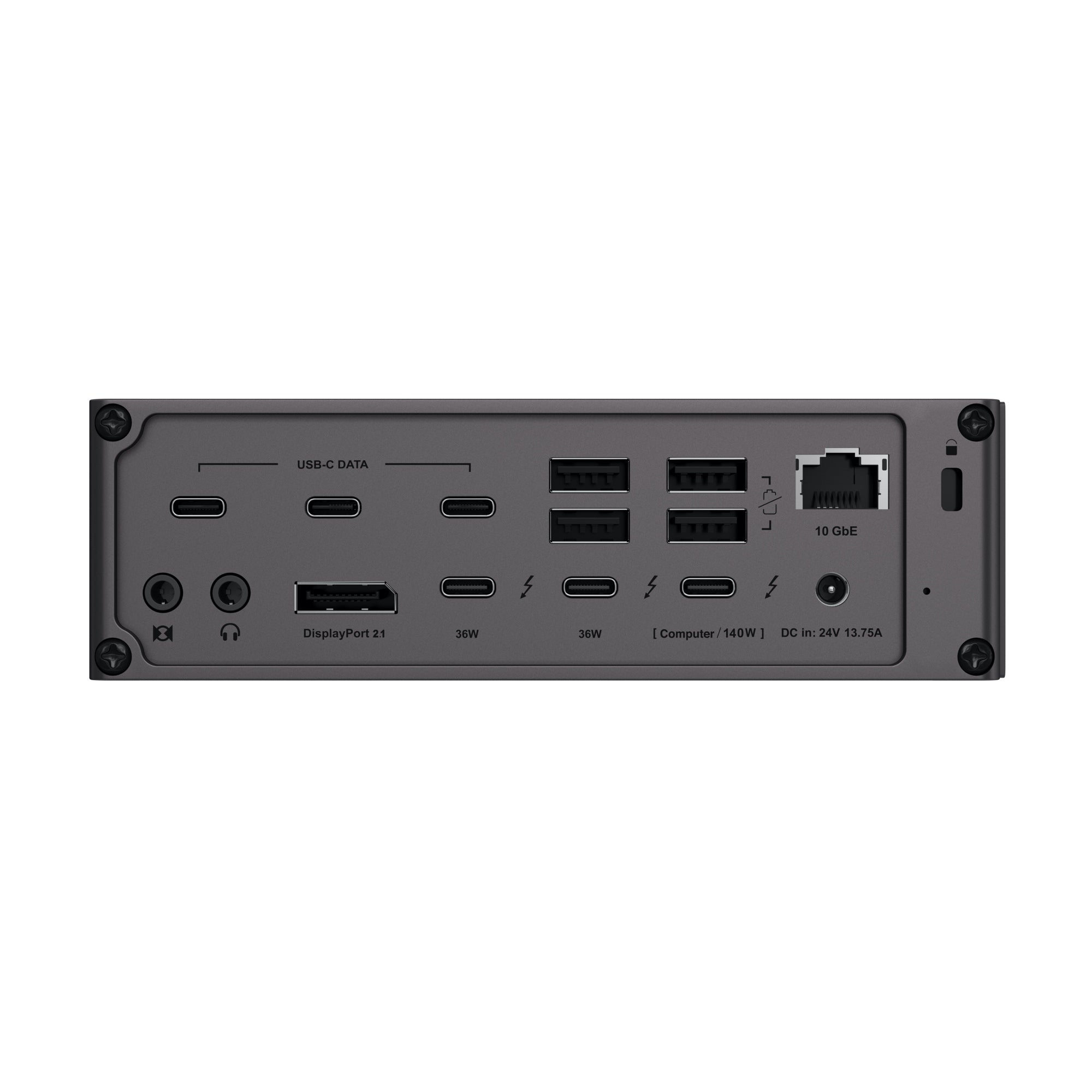

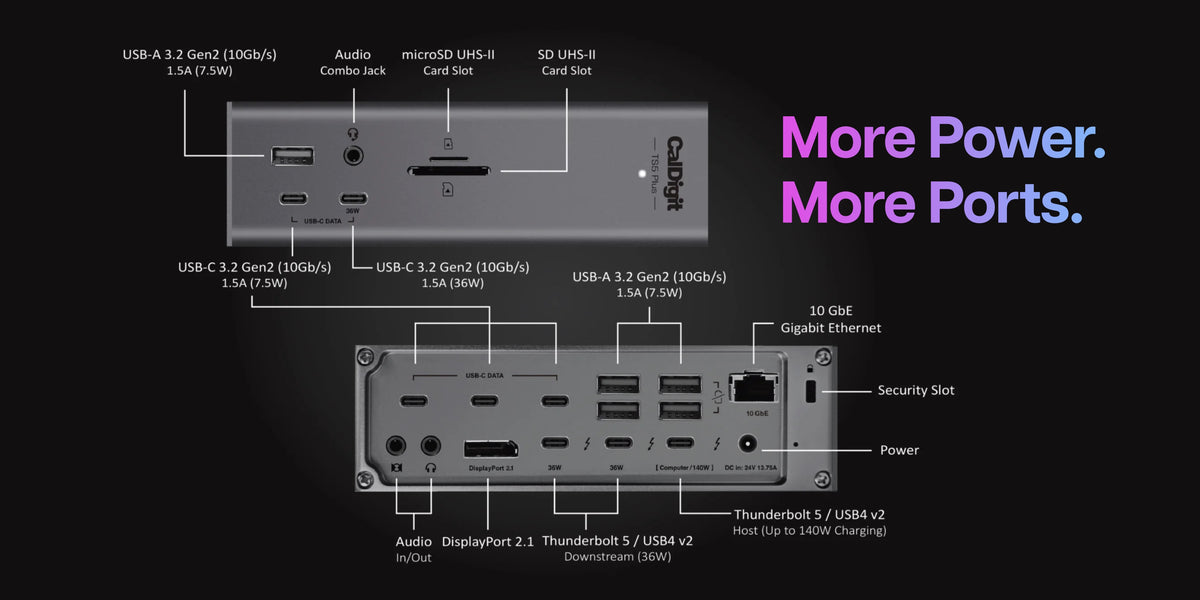

Thunderbolt & USB | |
| Host Port | 1 x Thunderbolt 5 Host Port (Up to 120Gb/s) |
| Downstream Thunderbolt Ports | 2 x Thunderbolt 5 Downstream Ports (80Gb/s) |
| USB-C Ports | 5 x USB-C (10Gb/s) |
| USB-A Ports | 5 x USB-A (10Gb/s) |
| As the TS5 Plus features powerful performance levels, USB-C (5Gb/s & 10Gb/s) host devices are not compatible. To get the maximum performance & features from the TS5 Plus an 80Gb/s Thunderbolt 5 or USB4 v2 host connection is required. | |
| Storage & Networking | |
| DisplayPort | 1 x DisplayPort 2.1 |

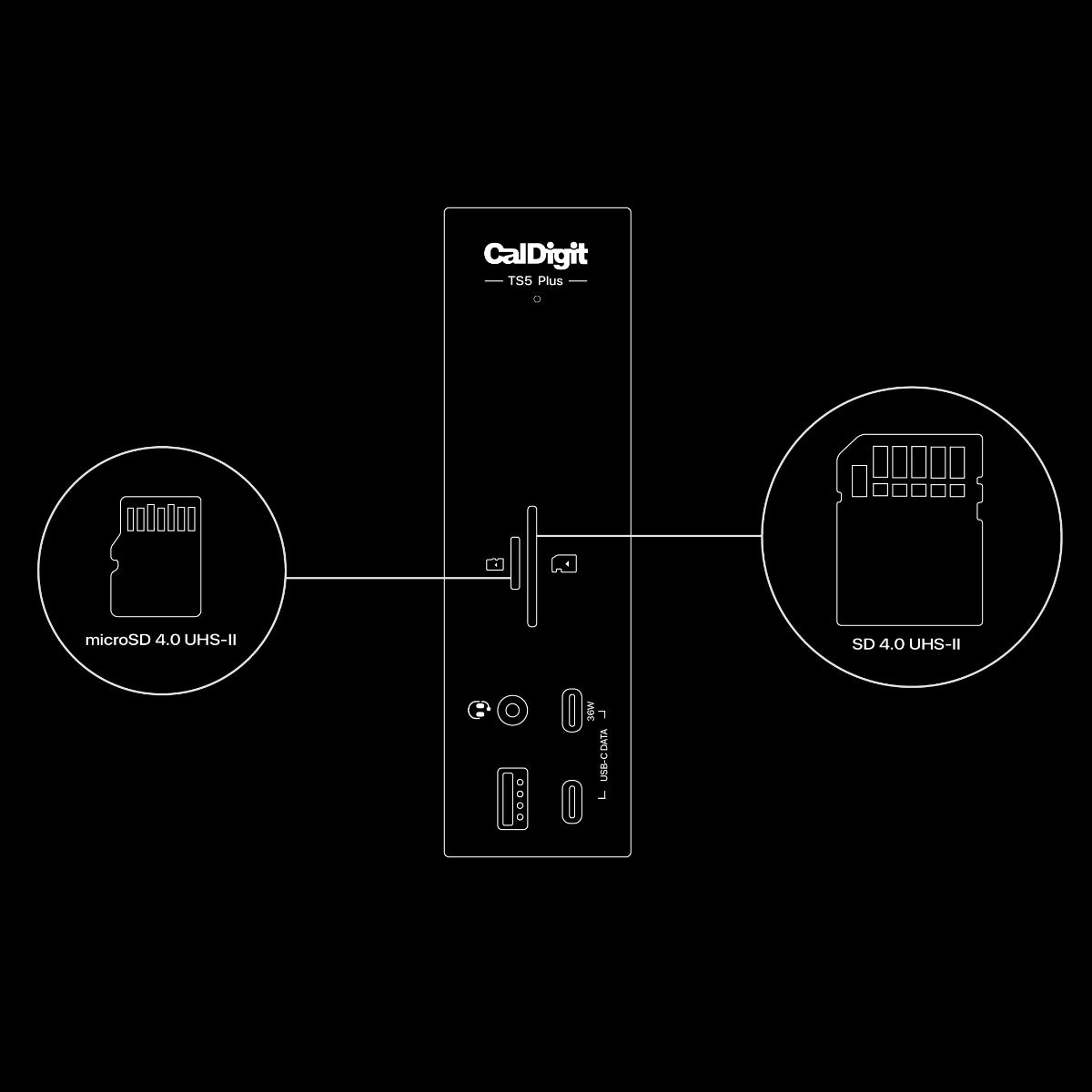

| SD Card Reader | 1 x SD 4.0 (UHS-II) |
| microSD Card Reader | 1 x microSD 4.0 (UHS-II) |

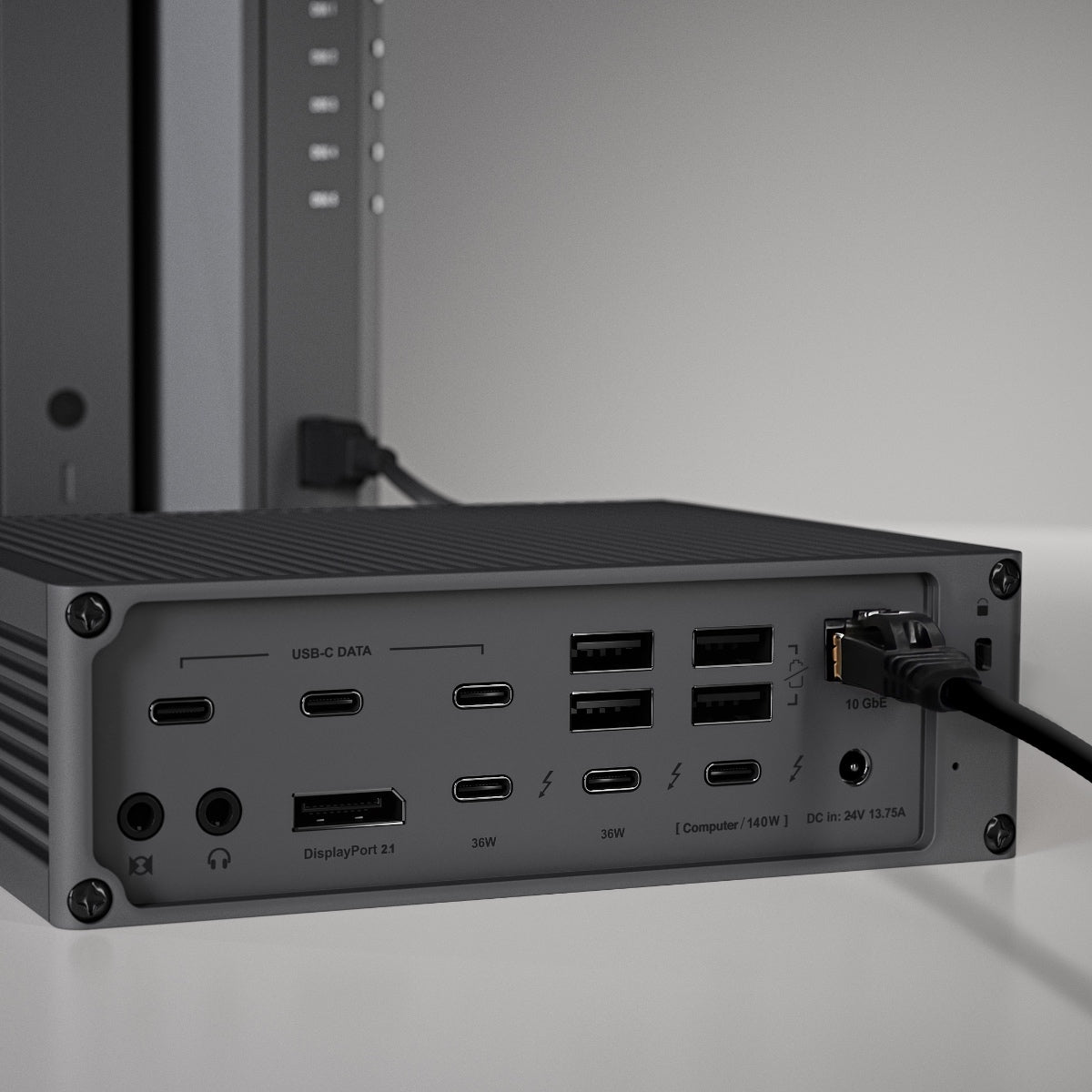

| Ethernet | 1 x 10 Gigabit Ethernet |
| Display & Audio | |

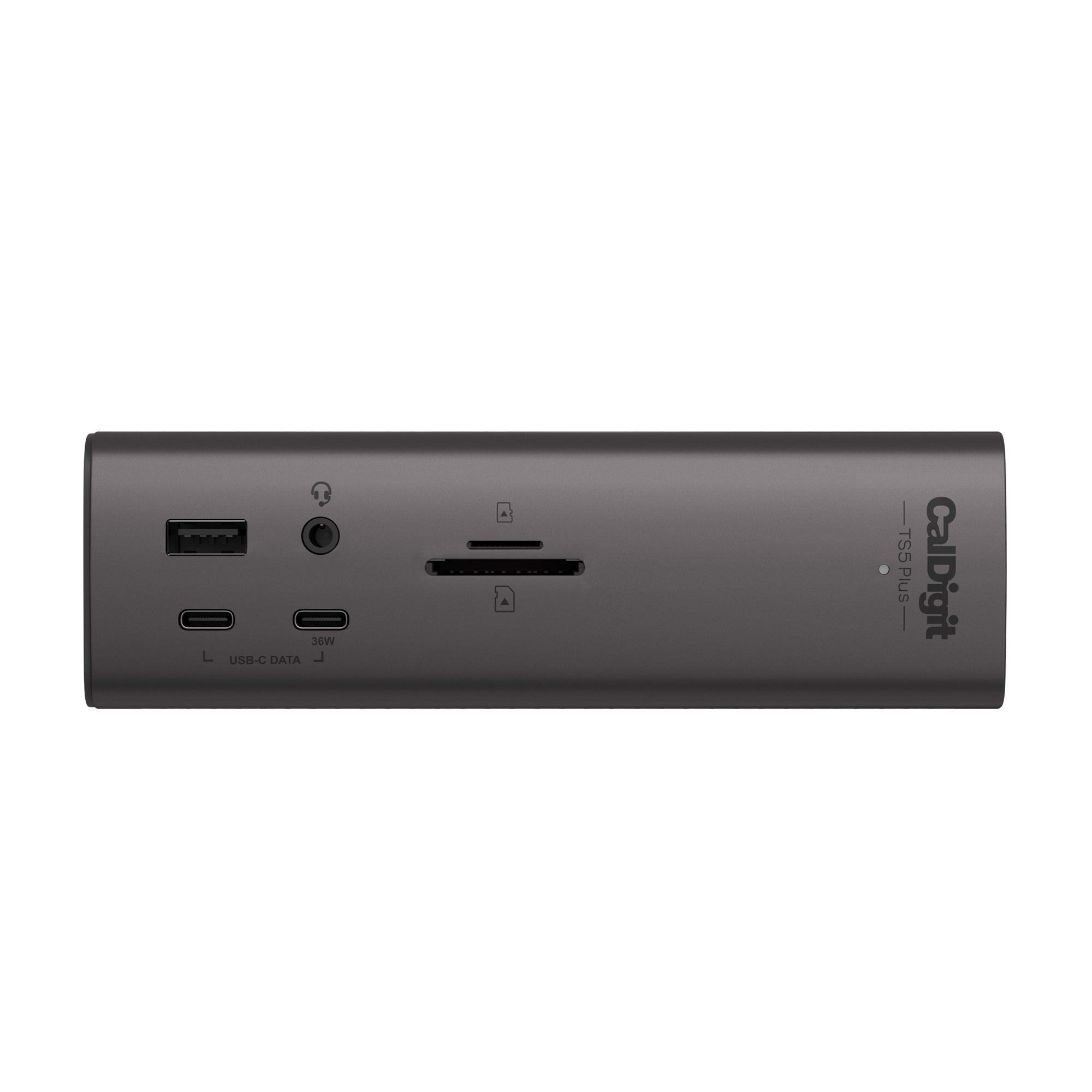

| Front Audio | 1 x Front Combo Audio In/Out (3.5mm) |
| Rear Audio Out | 1 x Rear Audio Out (3.5mm) |
| Rear Audio In | 1 x Rear Audio In (3.5mm) |
| Power | |
| DC Input | 1 x DC In (24V 13.75A) |
| Minimum System Requirements | |
| Operating Systems | macOS 15 or above Windows 11 or above iPadOS¹ |
| Computer/Device Compatibility | Thunderbolt 5 Computer Thunderbolt 4 Computer Thunderbolt 3 (Mac only) USB4 or USB4 v2 Computer (PCIe Tunneling support required) Thunderbolt/USB4 iPad¹ Intel 12th Gen Processor or newer Thunderbolt NVM Firmware 43.3 or newer |
| • Incompatible with Thunderbolt 3 Windows PCs ¹ Functionality is dependent on the host computer or tablet’s capabilities. | |
| Power Delivery | |
| Thunderbolt 5/USB4 Host Port | Up to 140W |
| Each Downstream Thunderbolt 4/USB4 Port | 36W |
| Front 36W USB-C Port | 36W |
| Remaining USB-C Ports | 7.5W |
| USB-A Ports | 7.5W |
| Size & Weight | |
| Height | 155.0mm |
| Width | 47.0mm |
| Length | 127.9mm |
| Weight | 0.90kg |
| In the Box | 1 x CalDigit TS5 Plus 1 x Thunderbolt 5 Braided Cable (1.0m) 2 x Rubber Feet Strips 1 x Power Cord 1 x Power Supply (330W) |
| Warranty | 2 Years |
FAQ
What are the differences between the TS5 Plus, TS5 and the TS4?
A comparison table can be found here.
How many displays does it support?
On compatible MacOS computers it can support 2 external displays and up to 3 on Windows machines with Thunderbolt 5.
Does it only work with Thunderbolt 5 computers?
No, the TS5 Plus is backwards compatible with Thunderbolt 4 computers and Thunderbolt 3 Macs.
Over a decade after the original Thunderbolt Station redefined what was possible via a single connection, the TS5 Plus has built on previous generations to offer the ultimate docking station experience.
Powered by the latest Thunderbolt 5 technology, the TS5 Plus expands Mac and PC workflows with the most advanced port selection ever included on a Thunderbolt dock.
Compare models.
- Next generation dock with Thunderbolt 5 connectivity
- Thunderbolt 5 ports deliver greater performance (up to 120Gb/s)
- Up to 140W charging for the most demanding modern laptops
- Support for up to 3x 4K displays*
- Extensive connectivity options with 20 ports (5x USB-A and 5x USB-C)
- Offline charging keeps USB devices powered without a host device
- 10 Gigabit Ethernet support for high speed networking support
- UHS-II SD and microSD card slots
- Dual USB controllers for improved performance
- 36W USB-C charging port
- DisplayPort 2.1 support
*On supported Thunderbolt 5 Windows PCs
Minimum System Requirements- macOS 15 or above
- Windows 11 or above
- Windows Intel 12th Gen Processor or newer
- Thunderbolt NVM Firmware 43.3 or newer
- Thunderbolt 4 or 5 Computers
- Thunderbolt 3 Macs (NOTE: Not compatible with Thunderbolt 3 Windows PC)
- USB4 or USB4 v2 Computer (PCIe Tunneling support required)
- Thunderbolt/USB4 iPad
Thunderbolt & USB | |
| Host Port | 1 x Thunderbolt 5 Host Port (Up to 120Gb/s) |
| Downstream Thunderbolt Ports | 2 x Thunderbolt 5 Downstream Ports (80Gb/s) |
| USB-C Ports | 5 x USB-C (10Gb/s) |
| USB-A Ports | 5 x USB-A (10Gb/s) |
| As the TS5 Plus features powerful performance levels, USB-C (5Gb/s & 10Gb/s) host devices are not compatible. To get the maximum performance & features from the TS5 Plus an 80Gb/s Thunderbolt 5 or USB4 v2 host connection is required. | |
| Storage & Networking | |
| DisplayPort | 1 x DisplayPort 2.1 |
| SD Card Reader | 1 x SD 4.0 (UHS-II) |
| microSD Card Reader | 1 x microSD 4.0 (UHS-II) |
| Ethernet | 1 x 10 Gigabit Ethernet |
| Display & Audio | |
| Front Audio | 1 x Front Combo Audio In/Out (3.5mm) |
| Rear Audio Out | 1 x Rear Audio Out (3.5mm) |
| Rear Audio In | 1 x Rear Audio In (3.5mm) |
| Power | |
| DC Input | 1 x DC In (24V 13.75A) |
| Minimum System Requirements | |
| Operating Systems | macOS 15 or above Windows 11 or above iPadOS¹ |
| Computer/Device Compatibility | Thunderbolt 5 Computer Thunderbolt 4 Computer Thunderbolt 3 (Mac only) USB4 or USB4 v2 Computer (PCIe Tunneling support required) Thunderbolt/USB4 iPad¹ Intel 12th Gen Processor or newer Thunderbolt NVM Firmware 43.3 or newer |
| • Incompatible with Thunderbolt 3 Windows PCs ¹ Functionality is dependent on the host computer or tablet’s capabilities. | |
| Power Delivery | |
| Thunderbolt 5/USB4 Host Port | Up to 140W |
| Each Downstream Thunderbolt 4/USB4 Port | 36W |
| Front 36W USB-C Port | 36W |
| Remaining USB-C Ports | 7.5W |
| USB-A Ports | 7.5W |
| Size & Weight | |
| Height | 155.0mm |
| Width | 47.0mm |
| Length | 127.9mm |
| Weight | 0.90kg |
| In the Box | 1 x CalDigit TS5 Plus 1 x Thunderbolt 5 Braided Cable (1.0m) 2 x Rubber Feet Strips 1 x Power Cord 1 x Power Supply (330W) |
| Warranty | 2 Years |
What are the differences between the TS5 Plus, TS5 and the TS4?
A comparison table can be found here.
How many displays does it support?
On compatible MacOS computers it can support 2 external displays and up to 3 on Windows machines with Thunderbolt 5.
Does it only work with Thunderbolt 5 computers?
No, the TS5 Plus is backwards compatible with Thunderbolt 4 computers and Thunderbolt 3 Macs.
Introducing the TS5 and TS5 Plus

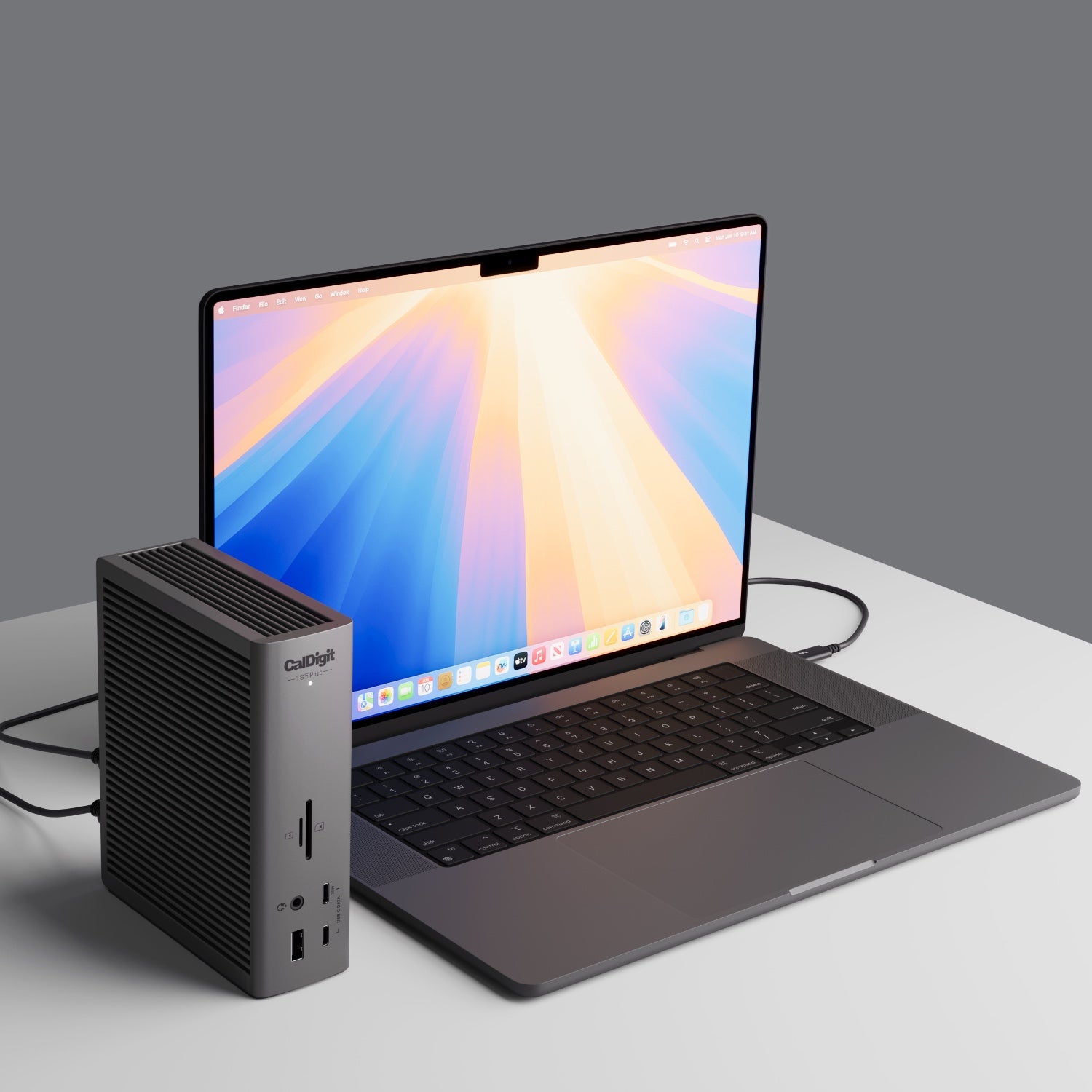

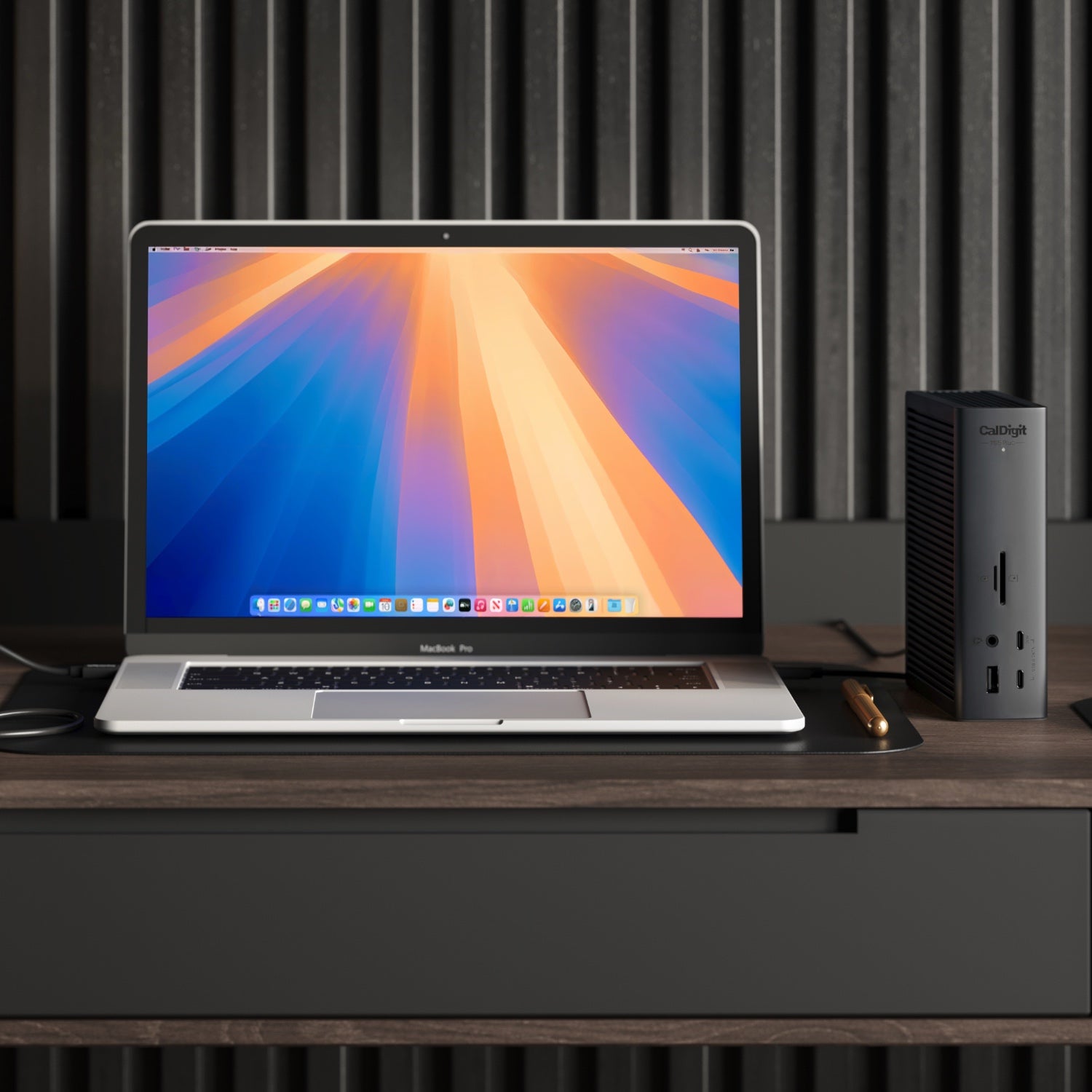

It Just Works

140W Power Delivery

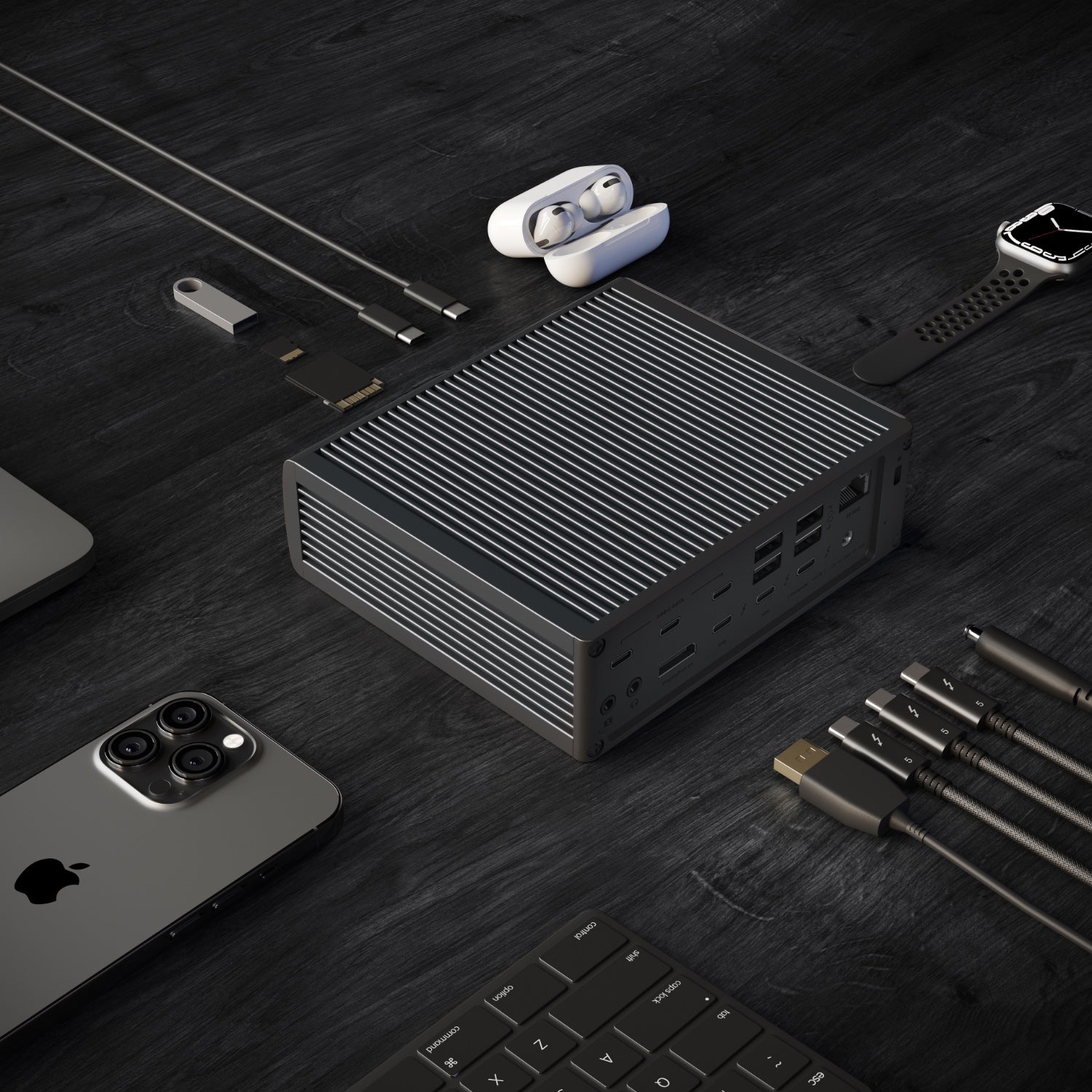

10 Powerful USB Ports

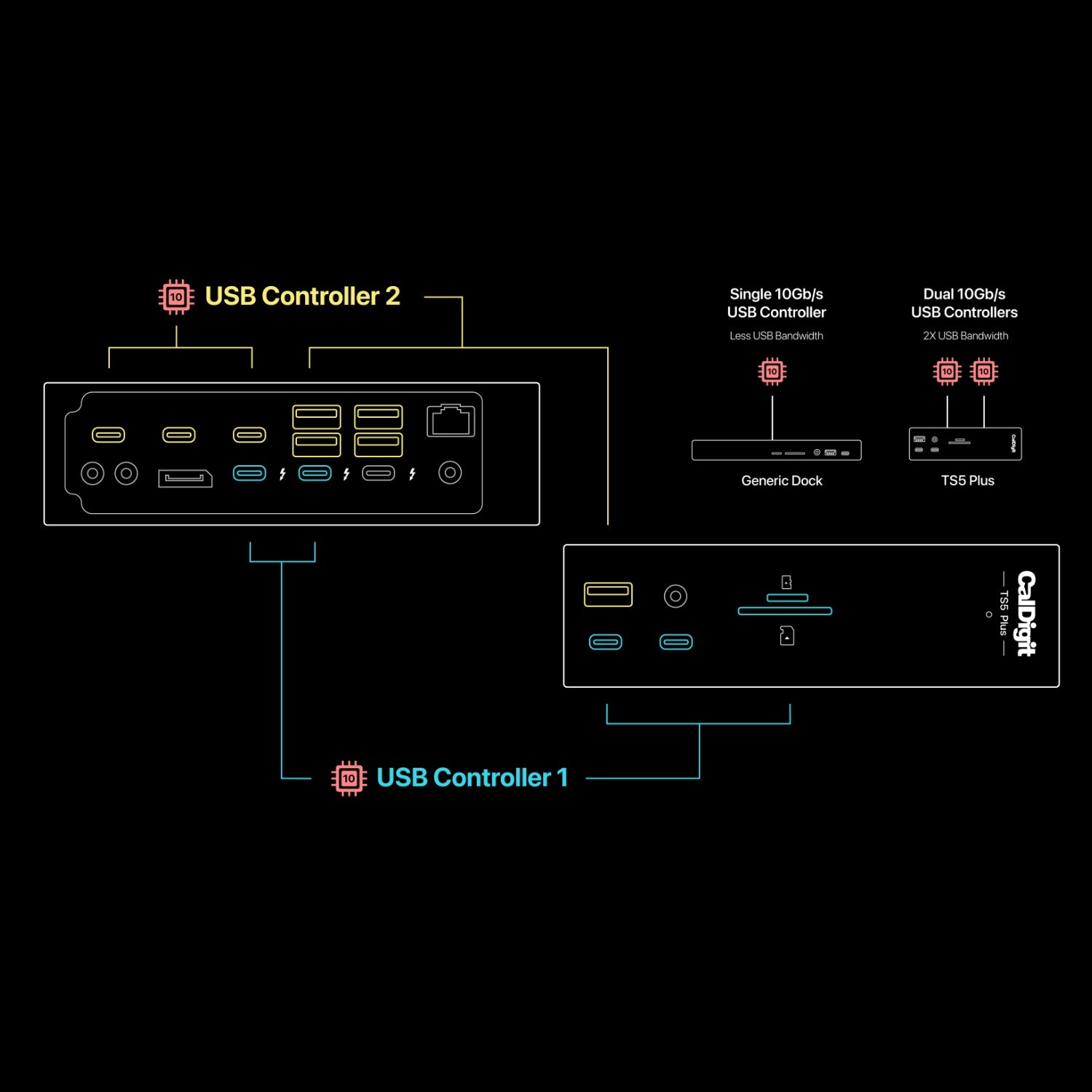

Dual USB Controllers

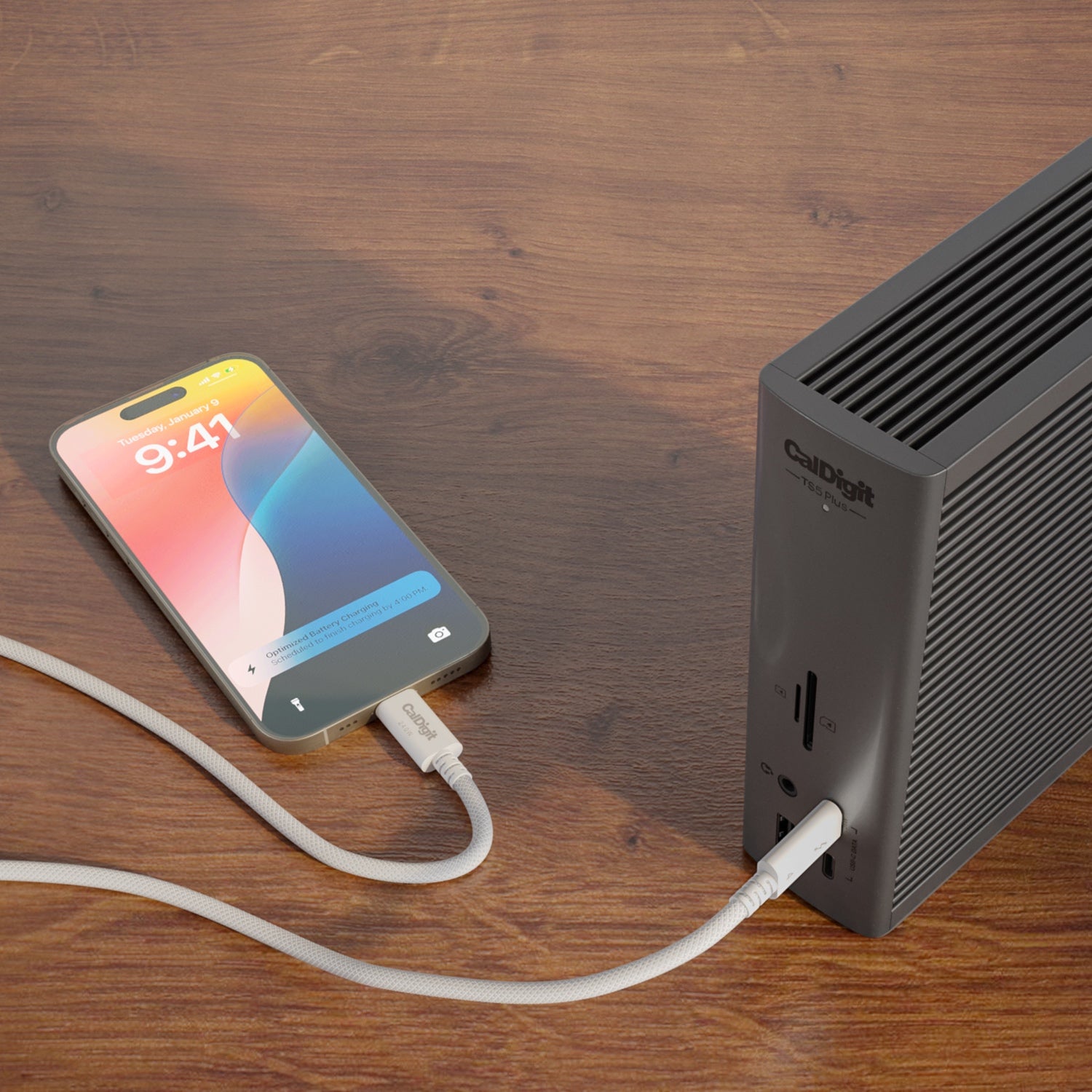

36W of Power for Accessories

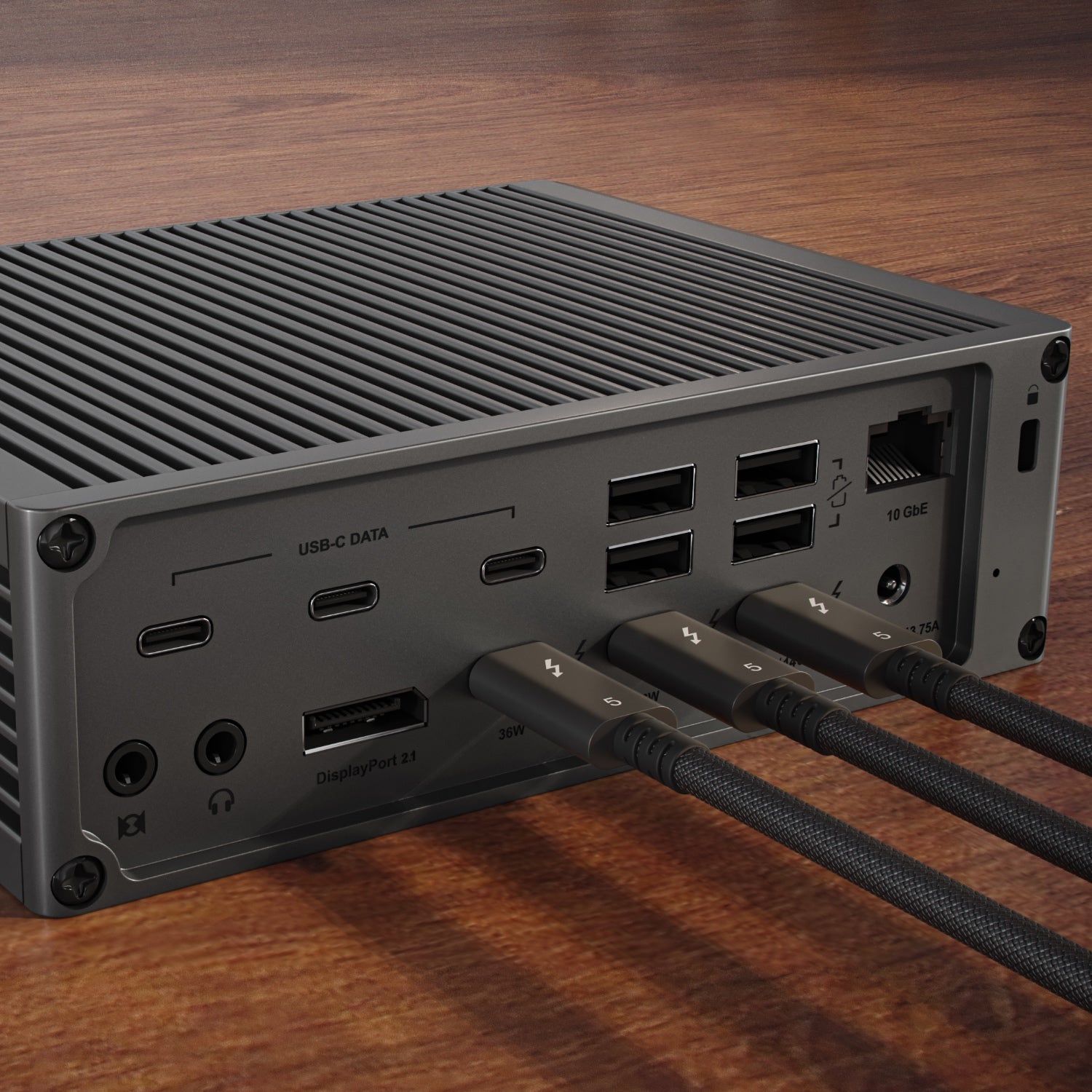

Thunderbolt 5

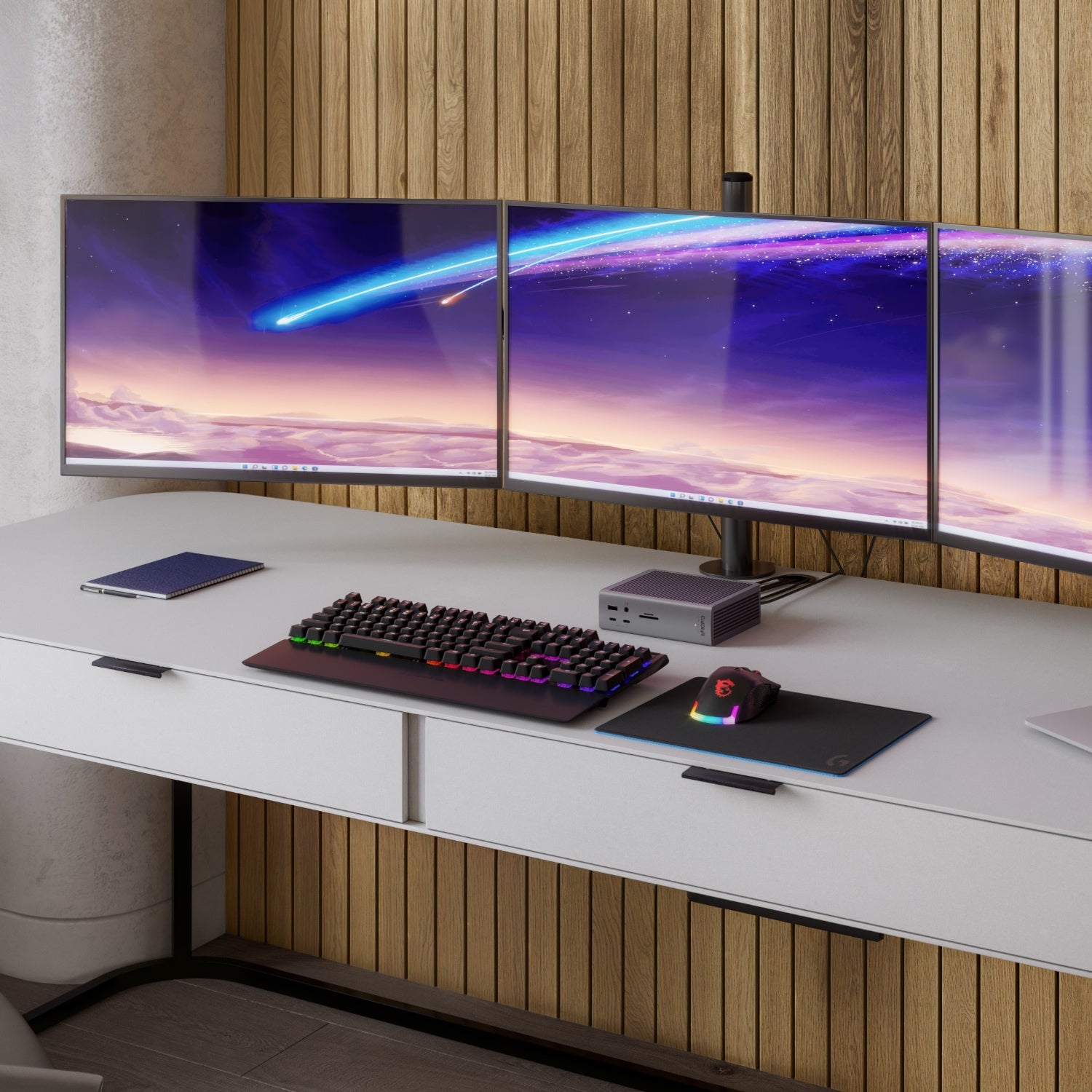

Single, Dual, or Triple Displays

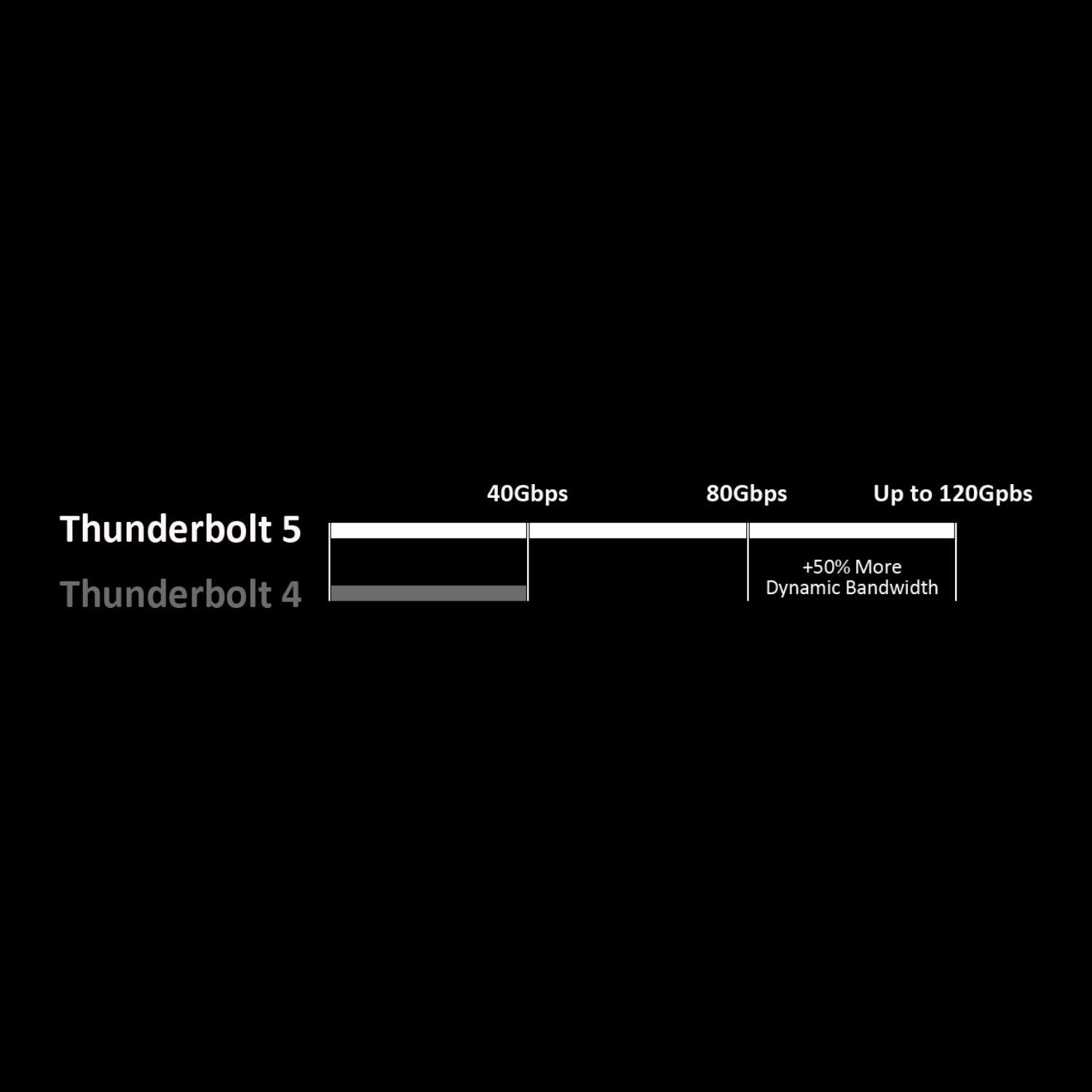

Bandwidth Boost

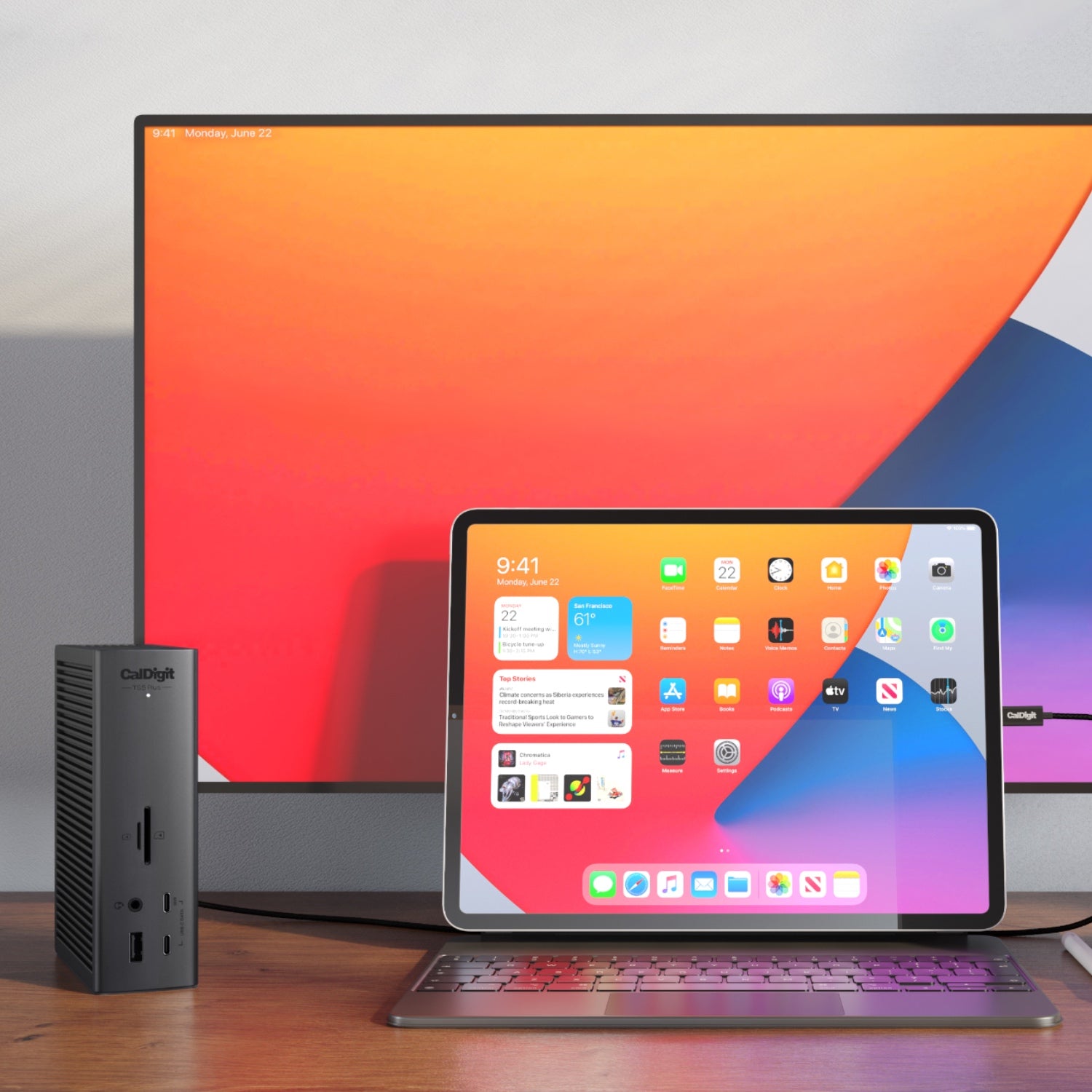

iPad and Tablet Support

10 Gigabit Ethernet

SD & microSD 4.0 UHS-II

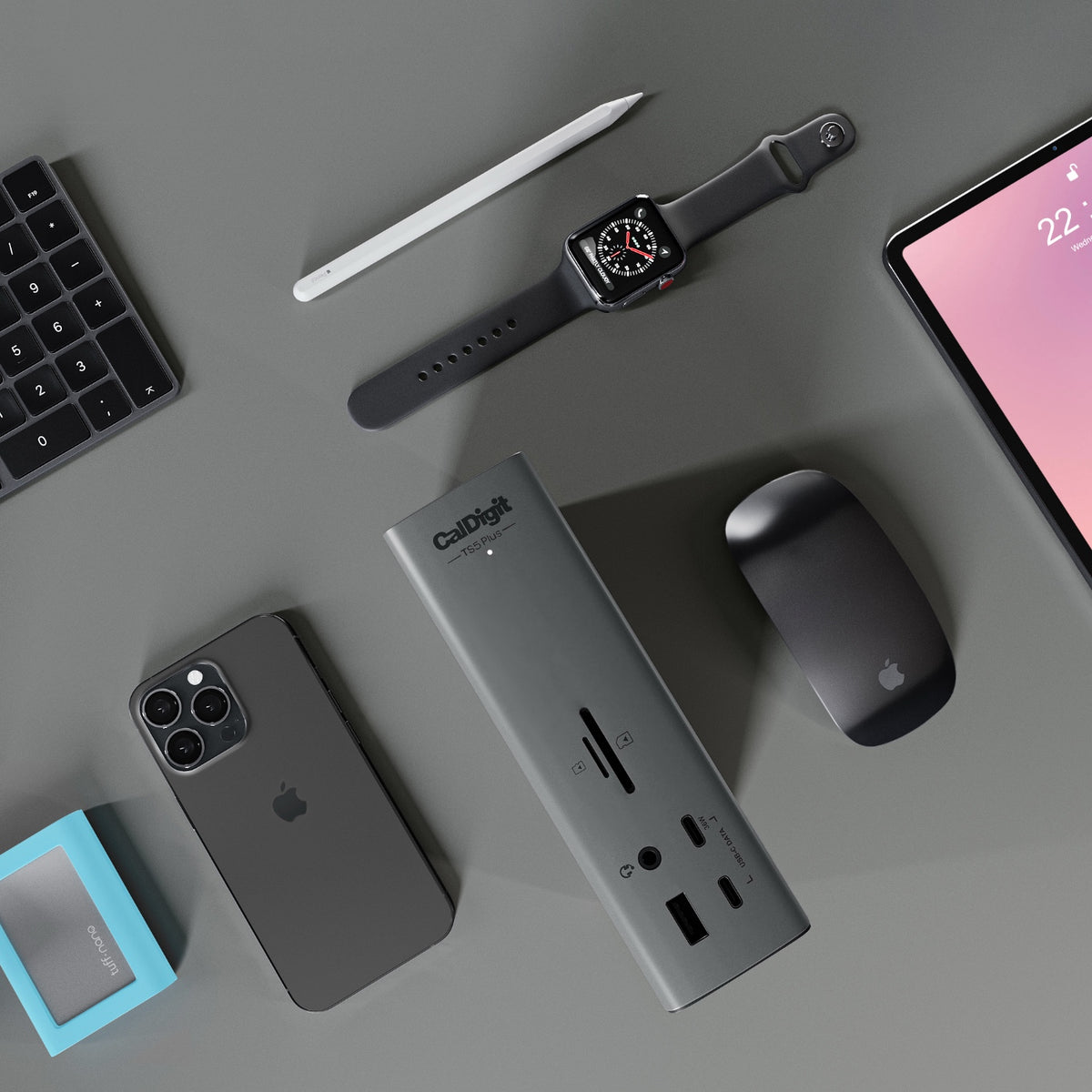

Offline Charging

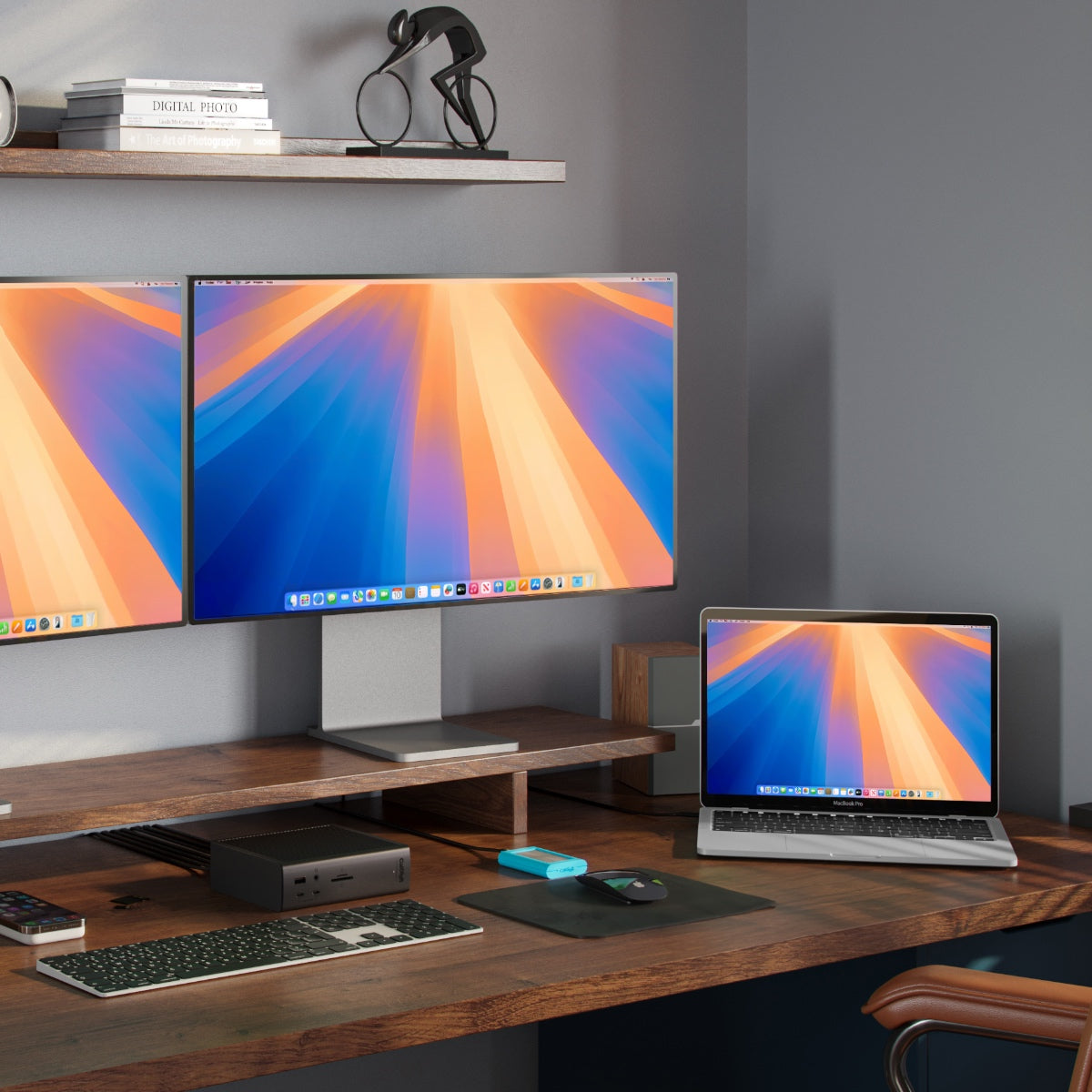

Rear Host Port

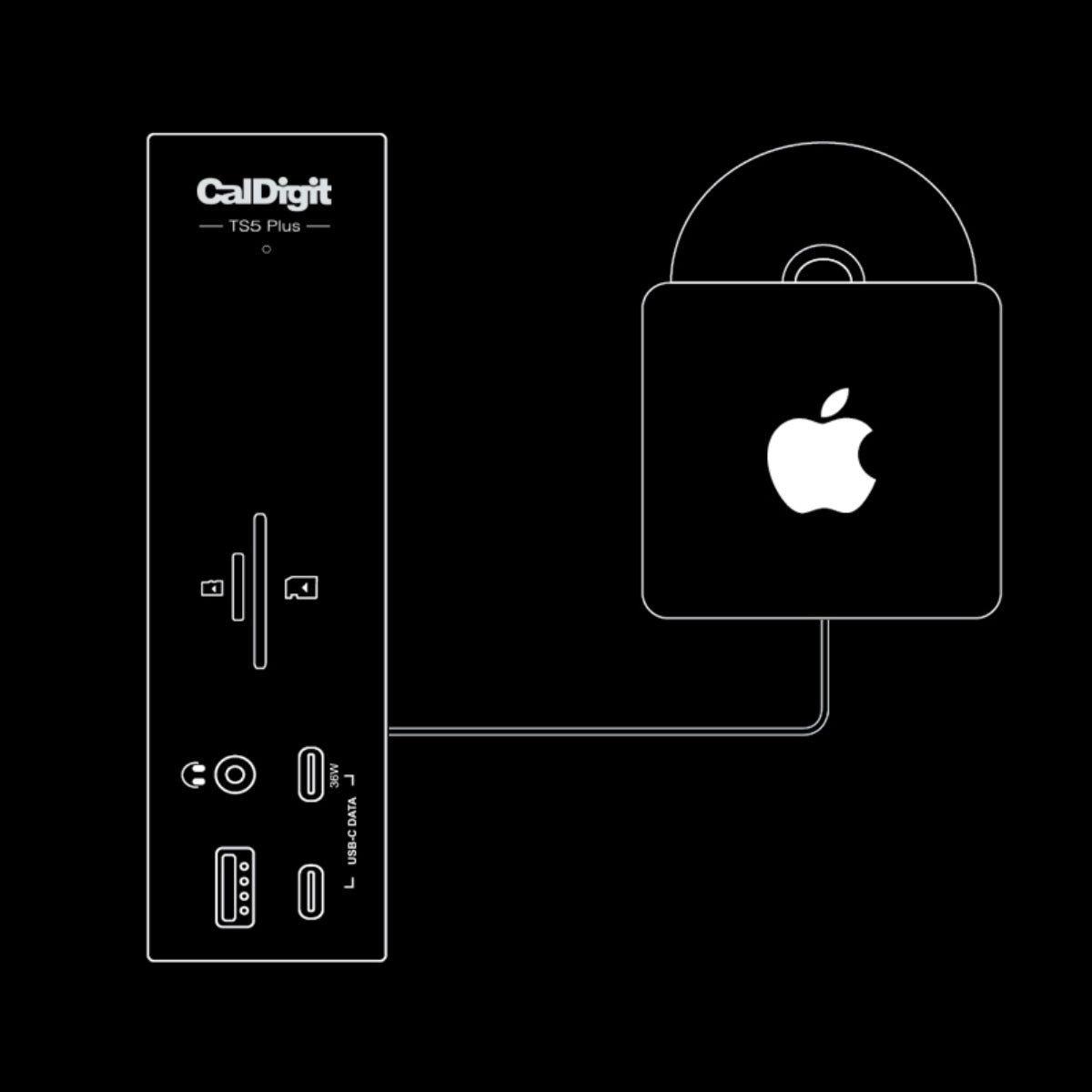

Apple SuperDrive

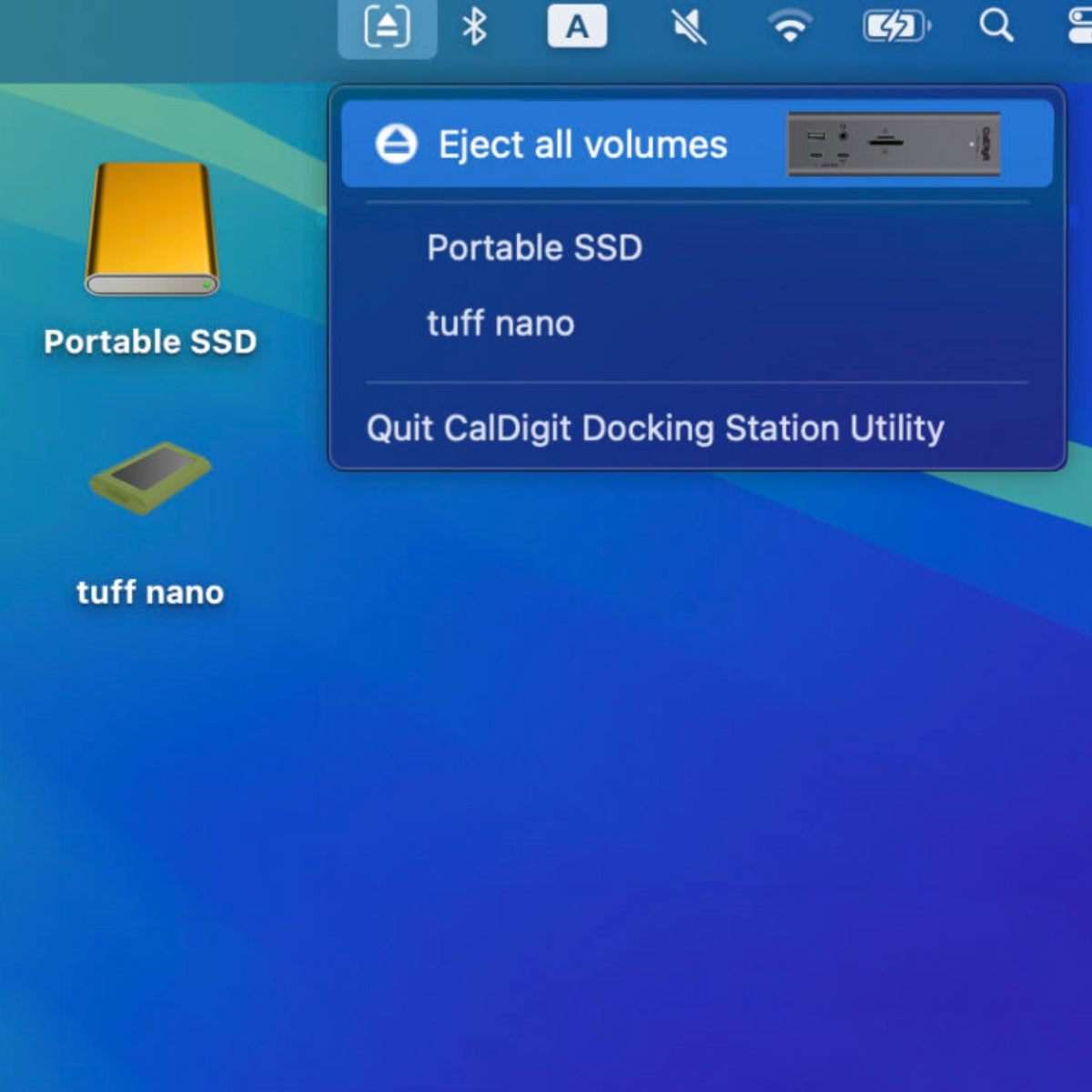

Docking Station Utility for Mac
Compare the TS5 Plus, TS5 and the TS4






Space Black
Space Grey
Space Grey
120Gb/s
120Gb/s
40Gb/s
20
15
19
140W
140w
98W
64Gb/s
64Gb/s
32Gb/s
Yes
Yes
No
Yes
Yes
No
Yes
Yes
Yes
3x 80Gb/s
4x 80Gb/s
3x 40Gb/s
36W
15w
15W
No
1x
No
5x
2x
5x
5x
3x
3x
Yes
No
No
1x 36W
1x20w
1x 20W
Yes
Yes
No
1x v2.1
No
1x v1.4
10GbE
2.5GbE
2.5GbE
330W
240w
230W
